EnviroFence™: Sustainable, Temporary Fencing with a choice of Pedestrian Design Load

EnviroFence™ is the first Temporary Fencing System in the UK to have been certified Net Zero Carbon. Installations are supported with site-specific carbon embodiment reports to support project decarbonisation reporting.

The patent-pending EnviroFence™ system is a robust, purpose designed system that offers significantly increased robustness and security compared to lightweight temporary mesh fencing (aka ‘Heras’ type systems) and greater economy than hoarding when a solid barrier is not required.

TWf2024:01, the new guidance on ‘Lightweight temporary open mesh fencing’ from the Temporary Works Forum states that Heras style fences are “typically suitable for short term demarcation of a works area but have limitations. Should the requirement for demarcation also need to provide security, personnel/ pedestrian/ crowd loading resistance, edge protection, longer duration, or impact provision then an alternative should be considered”.

EnviroFence™ is engineered to achieve permanent fence standards of BS 1722-14:2019. It is designed to resist Wind and Personnel loading and is configurable in a range of heights, mesh types and kentledge options to achieve Category 2 (Boundary Fence), Category 3 (Security fence) and Category 4 (Higher security fence) resistances.

Key Benefits:

TWf2024:01 Compliant

Designed with Temporary Works procedures and requirements in mind, EnviroFence™ can resist high winds and pedestrian loadings up to 0.74kN/m whilst achieving a Factor of Safety (FoS) of 1.5 against sliding and overturning.

Height Options

Choose between 2.4m, 3.0m, or 3.6m standard options to find the ideal perimeter protection for your project’s needs.

Support Options

Fixed directly to our low carbon 350kg EnviroBloK™, choose form a range of weighted proprietary options or secure to the ground using Spirafix™ ground screws.

Cost-Effective

With 100% reusable components, our fencing system offers long-term value, reducing waste and creating a closed-loop system.

  • EnviroFence™ ATLAS
  • EnviroFence™ OBERON
  • EnviroFence™ TITAN
  • Enhancements
  • EnviroFence™ Support Options
  • EnviroFence™ ATLAS

    EnviroFence ATLAS™ - Security & Strength

    EnviroFence™ ATLAS is a rapidly deployable 2.4m high temporary fencing system for low to medium security level applications. Utilising a profiled V-mesh panel, EnviroFence™ ATLAS comes with multiple support and security toppings options, making it the most versatile and easy-to-install pedestrian load designed system on the market.

    Standard pedestrian load options are 0.36kN/m and 0.74kN/m, plus maximum wind for the location, greater pedestrian loads can be achieved if required. Choose to contract hire or purchase EnviroFence OBERON™ with our guaranteed buyback.

    Choose to contract hire or purchase EnviroFence ATLAS™ with our guaranteed buyback.

    Key Features

    • 2.4 metre height
    • Lower carbon alternative to hoarding
    • Pedestrian loads from 0.36kN/m to 3.0kN/m
    • Ideal for low to medium security
    • Profiled V-mesh galvanised panels
    • Multiple support options
    • Spirafix™ ground screw fixing option
    • Compatible with vehicle and pedestrian gates
    • Optional RAL colour powder coating
    • Optional security toppings available
    • Optional cable support management
    • Optional PIDS & CCTV
    Enquire NowView Our Brochure
    Atlas-frame
    Atlas-frame

    EnviroFence™ OBERON

    EnviroFence™ OBERON - Next Level Security

    EnviroFence OBERON™ is a rapidly deployable 3.0m high temporary fencing system for medium to high security level applications. Incorporating a mesh panel with 5mm single vertical and 6mm double horizontal wires, EnviroFence OBERON™ also comes with additional multiple support and security toppings options for flexibility.

    Standard pedestrian load options are 0.36kN/m and 0.74kN/m, plus maximum wind for the location – a site-specific design pack is included. Choose to contract hire or purchase EnviroFence OBERON™ with our guaranteed buyback.

    Key Features

      • 3.0 metre height
      •  Lower carbon alternative to hoarding
      • Pedestrian loads from 0.36kN/m to 3.0kN/m
      • Ideal for medium to high security
      • 656 Twin-Mesh galvanised panel
      • Multiple support options
      • Spirafix™ ground screw fixing option
      • Compatible with vehicle and pedestrian gates
      • Optional RAL colour powder coating
      • Optional security toppings available
      • Optional cable support management
      • Optional PIDS & CCTV
    Enquire NowView Our Brochure
    Oberon-frame
    Oberon-frame

    EnviroFence™ TITAN

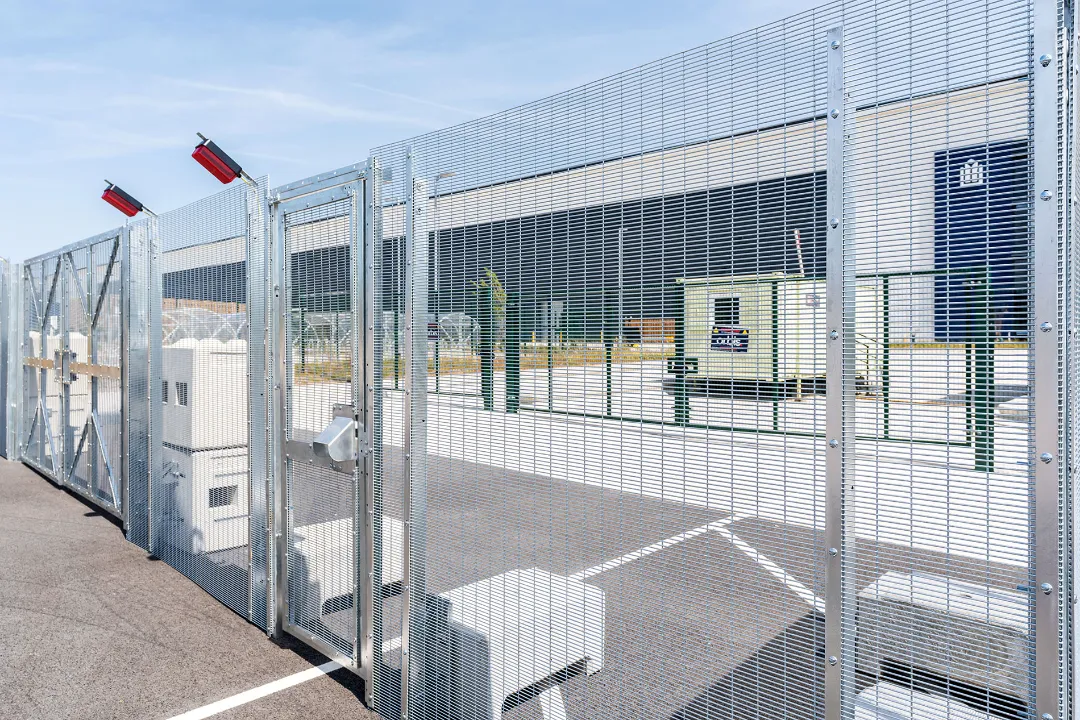

    EnviroFence TITAN™ - For Ultimate Protection

    EnviroFence TITAN™ is a rapidly deployable 3.0/3.6m high security temporary fencing system designed to meet the most demanding of applications. Utilising 358 mesh, EnviroFence TITAN™ is the first high security temporary fence to be certified net zero carbon whilst also offering at least 60 seconds delay against attack.

    As with the rest of the range, EnviroFence TITAN™ comes with multiple support and security toppings options. Standard pedestrian load options are 0.36kN/m and 0.74kN/m, plus maximum wind for the location, greater pedestrian loads can be achieved if required. Choose to contract hire or purchase this system with our guaranteed buyback.

    Key Features

      • 2.4, 3.0 & 3.6 metre height options
      • Lower carbon alternative to hoarding
      • Pedestrian loads from 0.36kN/m to 3.0kN/m
      • Ideal for projects requiring maximum security
      • High security 358 galvanised mesh profile panel
      • Multiple support options
      • Spirafix™ ground screw fixing option (2.4 & 3.0m only)
      • Compatible with vehicle and pedestrian gates
      • Optional RAL colour powder coating
      • Optional security toppings available
      • Optional cable support management
      • Optional PIDS & CCTV
    Enquire NowView Our Brochure
    Titan-frame
    Titan-frame

    Enhancements

    Enhancements & Additional Options

    EnviroFence™ systems can be further enhanced with lighting, cable management, a variety of topping options for enhanced security and pedestrian and vehicle gates for secure access.

    Additional Enhancements:

    • 110v LED or mains-free lighting
    • Cable support management
    • Bespoke cranked or straight lighting brackets
    • Single Roller uPVC anti-climb roller
    • Double Roller uPVC anti-climb roller
    • Aluminium spiked anti-climb roller
    • E-Pulse – low voltage electric fence
    • Perimeter Intrusion Detection Systems (PIDS)
    • Single and double pedestrian gates
    • Standard vehicle gates 4m to 8m opening
    Enquire Now
    Enhancements-frame
    Enhancements-frame

    EnviroFence™ Support Options

    EnviroFence™ Support Options

    EnviroFence™ comes with a choice of support options to cater for different site conditions, duration system would be installed for and sectors it can be used in such as construction, events, and high-risk applications such a national infrastructure sites.

    The choice of support option would also depend on the type of pedestrian load you want your temporary fence to meet.

    Our patent-pending ground support frame is a multi-purpose part of the system that can be used to support all ranges of the EnviroFence™ system. If installers or clients already have their own concrete blocks, they can be utilised by simply placing on top of the frame.

    For projects looking for the lowest carbon solution we recommend using Spirafix ground screws which are designed to be driven into the ground through the ground support frame. This solution includes full on-site testing and reporting.

    Support Options:

    • Fixed directly to 350kg or 800kg low carbon concrete blocks
    • Ground support frame utilising one of the following
      • Proprietary concrete blocks (client may own)
      • 50kg concrete filled weights
      • Water IBCs
      • Spirafix ground screw
    Enquire Now
    Support-frame-
    Support-frame
    FAQs

    Got a Question About EnviroFence™?

    What is EnviroFence™?

    EnviroFence™ is a multi-purpose no-dig temporary fence system. It is suitable for construction sites, events, festivals, and other applications that require a secure and engineer designed fence.

    How does EnviroFence™ work?

    EnviroFence™ can be installed by directly connecting the fence system to low carbon 350kg blocks, other proprietary blocks can be used for weighing down the ground support frame, alternatively the system can be screwed into the ground using Spirafix ground screws.
    Height options of 2.4, 3.0 and 3.6m are available, the highest no-dig temporary fence system in the UK. The system can also work with a range of mesh panel types and enhancements to suit the security requirements of the project.

    Is EnviroFence™ compliant with industry safety standards?

    Yes, EnviroFence™ complies with the latest Temporary Works Forum (TWf) guidance on Temporary Fencing, ensuring it meets the highest standards of quality, safety, and assurance.

    How can I calculate the carbon impact of using EnviroFence™ on my project?

    EnviroFence™ has been certified net zero carbon and comes with site-specific carbon embodiment report. This detailed report provides cradle to grave data as well as results comparing EnviroFence™ carbon impact against other systems.

    How can I hire or purchase EnviroFence™?

    You can contact us via our website, phone, or email to get a quote or place an order for EnviroFence™. We offer both hire and purchase options with a guaranteed buyback. We also provide delivery, installation, and removal services across the UK.
